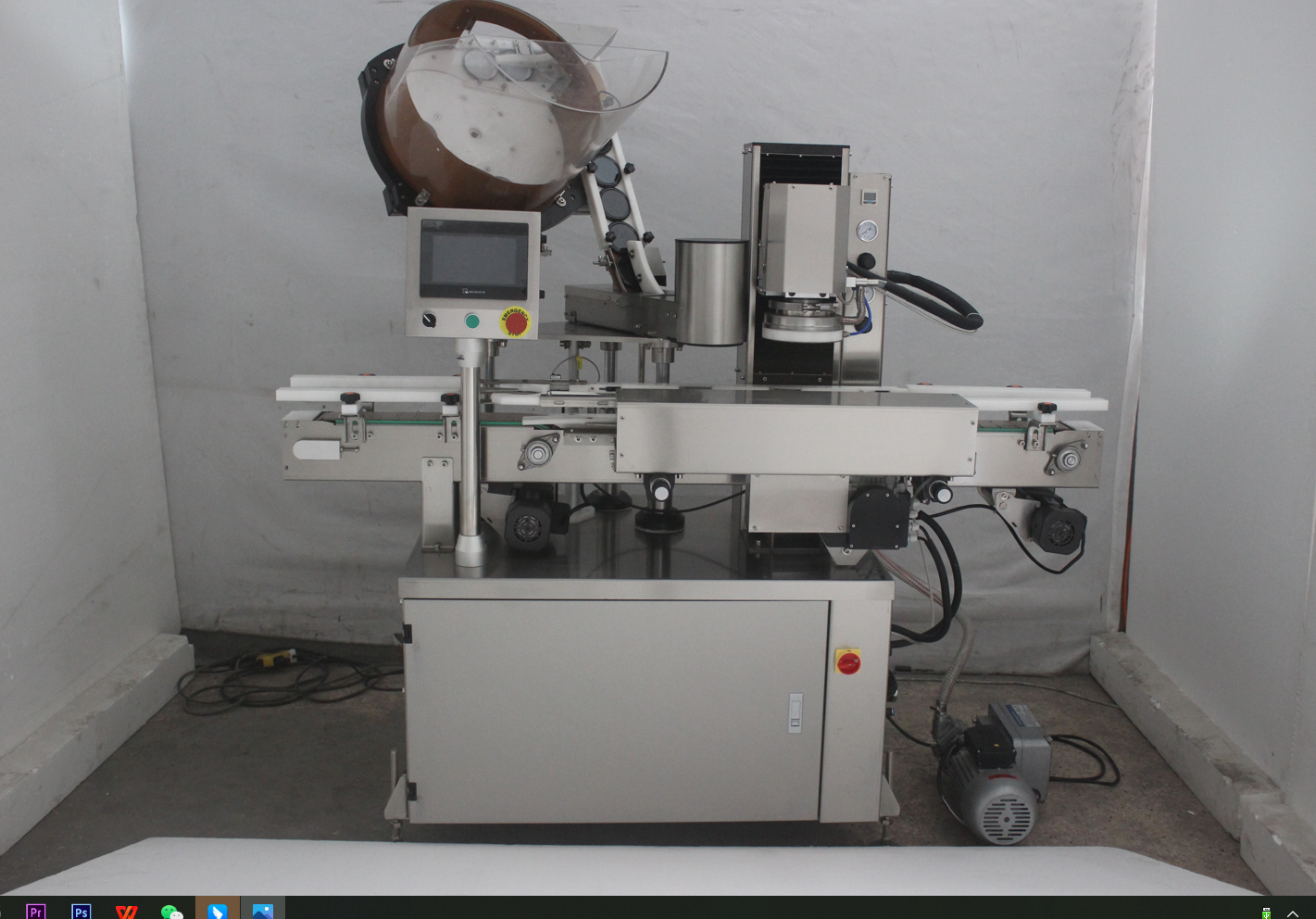

Automatic Bottle Vacuum Capping Machine

The ZNZJV100 model features: a vacuum chamber structure with an inflatable ring. The flexible silicone inflatable ring vacuum chamber offers excellent adaptability to different bottle shapes, reliable sealing, and clamping capabilities, ensuring the two key technical indicators of the vacuum capping machine: reliable vacuum level and capping accuracy.
Power Supply: Single-phase AC 220V 50Hz
Compressed Air: Less than 0.03 cubic meters per minute, 0.7 MPa
Vacuum Pump (external): Reference model XD020, pumping speed 20 cubic meters per hour, ultimate vacuum -96 KPa.
Total Power Consumption: Less than 1500 watts
Applicable Cap Types: Standard tinplate twist-off caps
Cap Outer Diameter Range: 60-100 mm
Cap Thickness: 8.6-16 mm
Applicable Bottle Range: Round bottles with a diameter of 60-100 mm, also suitable for some irregularly shaped bottles
Bottle Height: 80-250 mm
Vacuum Level: 0 to -90 KPa adjustable
Production Capacity: 2000 bottles per hour
Bottle Feeding Machine Height: 810-890 mm
Machine Dimensions: 2000 (L) x 884 (W) x 1650 (H) mm
